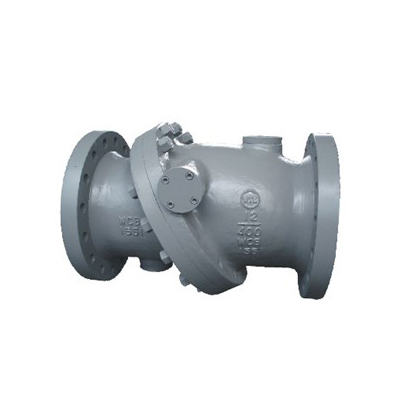

Swash Plate Type Check Valve

Structural features:

SENSI Swash plate type non-impact check valve is a non-impact check valve with a flange size of ASME B16.5 GB HG SH. The main advantage is to overcome the impact of the swing-type check valve and the lift-type upper return valve under working conditions, and to achieve a non-impact operation.

1. Double eccentric valve flap, when closed, the valve and the sealing surface are gradually contacted to achieve no impact and no noise.

2. Micro-elastic metal seat with good sealing performance.

3. The butterfly valve design makes the switch quick and sensitive and has a long service life.

4. The swash plate structure makes the fluid passages streamlined, with small flow resistance and energy saving effect.

Performance characteristics

Performance	Swing check valve	Swash plate type check valve
Closing force	Large	Small (about 1/5~1/8 of the former)
Impact force	Large	No
Sealing	Allow leakage by API 598	Zero leakage
Flow resistance	Large (flow resistance coefficient ξ = 1.3~2.5)	Small (flow resistance coefficient ξ = 0.18 ~ 0.6)
Circulation capacity	Small (flow coefficient Cv=76)	Large (flow coefficient Cv=154~333)
weight	Larger	Smaller (about 80% of the former)

Design specification

Flange size by: ASME B16.5 GB HG SH

Pressure rating: Class 150, 300, 600 P

Part material

Code	Body	Disc	Seat
P	CF8	CF8+STL	0Cr19Ni9
R	CF8M	CF8M+STL	0Cr17Ni12Mo2
K	CF3	CF3+STL	00Cr19Ni11
J	CF3M	CF3M+STL	00Cr17Ni14Mo2
E	CN7M	CN7M+STL	20#
C	WCB	WCB+13Cr	0Cr19Ni9
D	LCB	CF8+STL	0Cr19Ni9

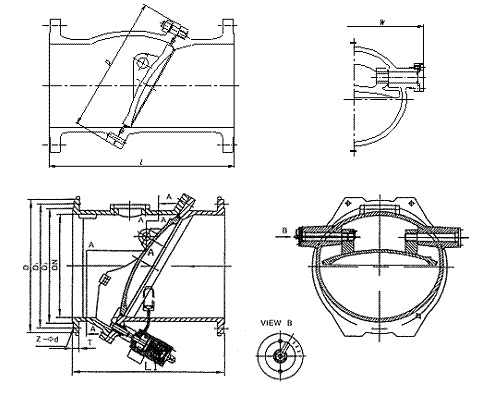

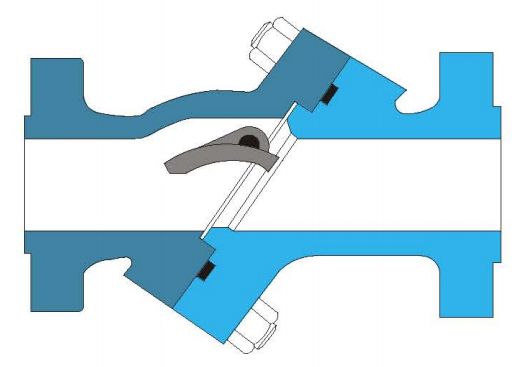

timg (2).jpg timg (1).jpg

Main dimensions

Class150	NPS	2	2.5	3	4	6	8	10	12	14	16	18	20	24	26	28	30	32
Class150	DN	50	65	80	100	150	200	250	300	350	400	450	500	600	650	700	750	800
L		203	216	241	292	356	495	622	698	787	864	978	978	1295	1295	1143	1143	1194
D		160	182	196	230	300	390	432	510	540	635	700	770	900	930	991	1020	1150
W		178	198	224	252	326	426	456	530	576	670	740	818	948	988	1050	1090	1240
Wet(kg)		11	16	22	34	62	112	169	238	337	420	550	685	910	1055	1260	1540	1860

Class 300	NPS	2	2.5	3	4	6	8	10	12	14	16	18	20	24	26	28	30	32
Class 300	DN	50	65	80	100	150	200	250	300	350	400	450	500	600	650	700	750	800
L		267	292	318	356	444	533	622	711	838	864	978	1016	1346	1346	1295	1372	1448
D		170	196	214	245	320	400	460	540	580	660	725	800	940	970	1040	1080	1210
W		198	220	232	268	360	426	457	572	620	690	760	848	988	1018	1250	1280	1350
Wet(kg)		17	22	32	97	110	162	228	380	443	530	780	980	1320	1364	1762	2050	2870

Class 600	NPS	2	2.5	3	4	6	8	10	12	14	16	18	20	24
Class 600	DN	50	65	80	100	150	200	250	300	350	400	450	500	600
L		292	330	356	432	559	660	787	838	889	991	1092	1194	1397
D		185	196	210	270	340	440	520	570	610	690	755	850	990
W		212	225	240	298	405	460	492	602	650	710	780	902	1040
Wet(kg)		27	44	47	115	190	320	430	586	750	1015	1480	2050	2550
