DIN Dual Plate Check Valve

Facebook

Detail

DIN Dual Plate Check Valve PDF DOWNLOAD

Overview

SENSI Wafer dual plate check valve is used for pure pipelines and industrial, environmental, water treatment, high-rise building water supply and drainage pipelines to prevent reverse flow of medium. The check valve adopts a clip type, the disc has two semicircles, and the spring is forcibly reset, and the sealing surface can be a body wear welding wear material or a lining rubber, and the utility model has wide application range and reliable sealing.

Characteristics

1. Small size, light weight, compact structure and convenient maintenance

2. The valve plate adopts the dual type, which can be closed by itself under the elastic force of the spring.

3, due to the speed closure, can prevent the media from flowing backwards

4. The valve body structure has small length and good rigidity.

5, safe and convenient, can be used for horizontal and vertical installation

Executive standard

1, flange connection size: EN1092-1/ANSI B16.5/JIS B2220

2. Structure length: API 594, ISO 5752, EN 558.1/JIS B2002

Materials and main parameters

Main parts material	Body	WCB(A105)	ZG1Cr18Ni9Ti	CFB(304)	CF3(304L)	ZG1Cr18Ni12Mo2Ti	CF8M(316)	CF3M(316M)
	Disc	CF8	CF8	CF8	CF3	CF9M	CF8M	CF3M
	Stem	2Cr13	1Cr18Ni9Ti	0Cr18Ni9	00Cr19Ni10	ZG1Cr18Ni12Mo2Ti	0Cr17Ni12Mo2	00Cr17Ni14Mo2
	Spring	0Cr18Ni9	0Cr18Ni9	0Cr18Ni9	00Cr19Ni10	00Cr17Ni14Mo2	00Cr17Ni14Mo2	00Cr17Ni14Mo2
Applicable conditions	Applicable medium	Water, steam, oil, etc.	Corrosive medium such as nitric acid		Strong oxidizing medium	Corrosive medium such as nitric acid		Corrosive medium such as urea
Applicable conditions	Temperature(℃)	-29～425	-196～540		-196～425	-196～540		-196～455
Note: This table is the model of the conventional wafer type check valve, the main parts and materials and applicable working conditions. For other requirements and model preparation, please refer to the model of the clamp type check valve.

Main size and weight

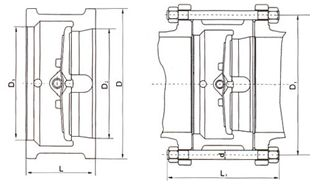

PNMPa	DNmm	Dimension(mm)				Wet. (Kg)	Piping flange (for reference)
PNMPa	DNmm	L	D	D3	D2	Wet. (Kg)	Bolt hole center diam D1	Bolt Quantity	Bolt diam d	Bolt length Ll
PN1.0MPa	50	43	108	56	51	2	125	4	M16	150
	65	46	128	73	65	3	145	4	M16	155
	80	64	142	88	80	4	160	8	M16	160
	100	64	162	108	102	6	180	8	M16	165
	125	70	192	132	127	8	210	8	M16	180
	150	76	218	160	152	13	240	8	M20	205
	200	89	273	210	203	24	295	8	M20	235
	250	114	328	266	254	37	350	12	M20	255
	300	114	378	310	305	50	400	12	M20	290
	350	127	438	355	350	76	460	16	M20	295
	400	140	489	405	400	110	515	16	M24	310
	450	152	539	455	450	135	565	20	M24	325
	500	152	594	505	500	158	620	20	M24	345
	600	178	696	605	600	320	725	20	M27	355
	700	229	811	700	675	380	840	24	M27	440
	800	241	918	800	796	560	950	24	M30	450
	900	241	1018	903	898	640	1050	28	M30	520
	1000	300	1124	1055	1050	900	1160	28	M33	590
	1200	350	1340	1205	1200	1400	1380	32	M36	695
PN1.6MPa	50	43	108	56	51	2	125	4	M16	150
	65	46	128	73	65	3	145	4	M16	155
	80	64	142	88	80	4	160	8	M16	160

PN MPa	DNmm	Dimension(mm)				Wet. (Kg)	Piping flange (for reference)
PN MPa	DNmm	L	D	D3	D2	Wet. (Kg)	Bolt hole center diam D1	Bolt Quantity	Bolt diam d	Bolt length Ll
PN1.6MPa	100	64	162	108	102	6	180	8	M16	165
	125	70	192	132	127	8	210	8	M16	180
	150	76	218	160	152	13	240	8	M20	205
	200	89	273	210	203	24	295	12	M20	235
	250	114	329	266	254	39	355	12	M24	265
	300	114	384	310	305	50	410	12	M24	305
	350	127	444	355	350	76	470	16	M24	310
	400	140	496	405	400	110	525	16	M27	330
	450	152	556	455	450	135	585	20	M27	345
	500	152	618	505	500	158	650	20	M30	370
	600	178	732	605	600	320	770	20	M33	380
	700	229	802	700	695	380	840	24	M33	470
	800	241	912	800	796	560	950	24	M36	475
	900	241	1012	903	898	640	1050	28	M36	545
	1000	300	1126	1055	1050	900	1170	28	M39	620
	1200	350	1340	1205	1200	1400	1390	32	M45	735
PN2.5MPa	50	60	108	56	51	2	125	4	M16	150
	65	67	128	73	65	3	145	8	M16	160
	80	73	142	88	80	4	160	8	M16	170
	100	73	168	108	102	6	190	8	M20	180
	125	86	194	132	127	8	220	8	M24	205
	150	98	224	160	152	14	250	8	M24	220
	200	127	284	210	203	27	310	12	M24	255
	250	146	341	266	254	42	370	12	M27	285
	300	181	401	310	305	54	430	16	M27	325
	350	184	458	355	350	86	490	16	M30	340
	400	191	515	405	40	120	550	16	M33	360
	450	203	565	455	450	148	600	20	M33	375
	500	219	622	505	500	165	660	20	M33	395
	600	222	732	605	600	340	770	20	M36	410
	700	305	831	700	695	400	875	24	M39	500
	800	305	942	800	796	580	990	24	M45	520
	900	368	1040	903	898	660	1090	28	M45	590
	1000	432	1155	1055	1050	960	1210	28	M52	675
	1200	524	1365	1205	1200	1440	1420	32	M52	790

PN MPa	DN mm	Dimension(mm)				Wet. (Kg)	Piping flange (for reference)
		L	D	D3	D2		Bolt hole center diam D1	Bolt Quantity	Bolt diam d	Bolt length L1
		L	D	D3	D2		Bolt hole center diam D1	Bolt Quantity	Bolt diam d	RF、MFM	RJ
PN4.0MPa	50	60	108	58	51	3	125	4	M16	150	-
	65	67	125	73	65	4	145	8	M16	160	-
	80	73	142	88	80	6	160	8	M16	170	-
	100	73	168	108	102	8	190	8	M20	180	-
	125	86	194	132	127	13	220	8	M24	205	-
	150	98	224	160	152	16	250	8	M24	220	-
	200	127	291	210	203	28	320	12	M27	270	-
	250	146	353	266	254	49	385	12	M30	300	-
	300	181	418	310	305	76	450	16	M30	3485	-
	350	222	475	355	350	114	510	16	M33	400	-
	400	232	547	405	400	190	585	16	M36	425	-
	450	264	572	455	450	200	610	20	M36	470	-
	500	292	626	505	500	260	670	20	M39	505	-
	600	318	745	608	600	404	795	20	M45	575	-
PN6.3MPa	50	60	114	58	51	4	135	4	M20	170	185
	65	67	138	73	65	5	160	8	M20	180	195
	80	73	148	88	80	7	170	8	M20	190	205
	100	79	174	108	102	10	200	8	M24	210	225
	125	105	221	132	127	16	240	8	M27	250	265
	150	136	248	162	152	20	280	8	M30	290	305
	200	165	310	212	200	38	345	12	M33	335	350
	250	213	362	266	250	62	400	12	M33	395	410
	300	229	422	310	305	100	460	16	M33	420	435
	350	273	487	355	350	160	525	16	M36	480	495
	400	305	541	405	400	260	585	16	M39	525	540
PN10.0MPa	50	60	120	58	51	5	145	4	M24	185	200
	65	67	144	73	65	7	170	8	M24	195	210
	80	73	154	88	80	10	180	8	M24	205	220
	100	79	181	108	102	12	210	8	M27	225	240
	125	105	218	132	127	19	250	8	M30	265	280
	150	136	258	162	152	25	290	12	M30	305	320
	200	165	324	212	200	56	360	12	M33	355	370
	250	213	392	266	250	94	430	12	M36	425	440
	300	229	456	312	305	142	500	16	M39	465	480
	350	273	510	355	350	230	560	16	M45	535	550
	400	305	570	405	400	366	620	16	M45	585	600

PN MPa	DN mm	Dimension(mm)				Wet. (Kg)	Piping flange (for reference)
		L	D	D3	D2		Bolt hole center diam D1	Bolt Quantity	Bolt diam d	Bolt length Ll
		L	D	D3	D2		Bolt hole center diam D1	Bolt Quantity	Bolt diam d	RF、MFM	RJ
PN16.0MPa	50	70	120	56	51	7	145	4	M24	210	225
	65	83	144	73	65	10	170	8	M24	235	250
	80	83	154	90	80	14	180	8	M24	245	260
	100	102	181	108	102	17	210	8	M27	280	295
	125	110	218	136	127	28	250	8	M30	305	320
	150	159	258	162	152	36	290	12	M30	365	385
	200	206	325	212	203	78	360	12	M33	425	445
	250	241	389	266	254	130	430	12	M39	495	515
	300	292	459	312	305	210	500	16	M39	570	600
PN20.0MPa	50	70	136	56	51	8	160	8	M22	215	230
	65	83	174	73	65	16	203	8	M27	255	270
	80	83	198	90	80	22	230	8	M30	270	285
	100	102	254	108	102	35	292	8	M36	330	345
	125	110	280	136	127	50	318	12	M36	355	375
	150	159	316	162	152	78	360	12	M42	430	450
	200	206	390	212	203	120	440	12	M48	510	530
	250	248	518	266	254	220	572	16	M52	595	625
PN25.0MPa	50	70	124	56	51	8	150	8	M24	215	230
	65	83	154	73	65	14	180	8	M24	235	250
	80	83	171	90	80	20	200	8	M27	250	265
	100	102	203	108	102	28	235	8	M30	290	305
	125	10	243	136	127	44	275	12	M30	310	325
	150	159	285	162	152	70	320	12	M33	385	405
	200	206	359	212	203	110	400	12	M39	470	490
	250	248	443	266	254	200	490	16	M45	560	580
	300	305	540	312	305	350	590	16	M48	665	695
