One Piece Floating Ball Valve
ONE PIECE FLOATING BALL VALVE PDF DOWNLOAD

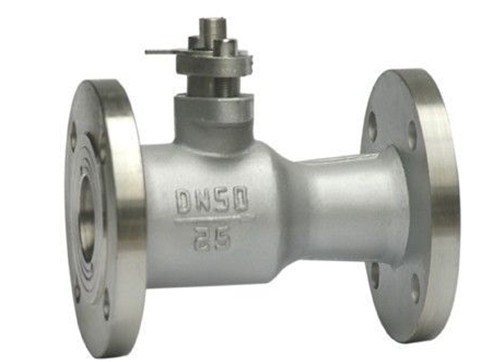

Cast steel Floating Ball Valve
Floating ball supported by two valve seats. Under the medium pressure effect, a certain displacement can be generated by the ball itself so as to be pressed onto the seat seal ring at the outlet, guaranteeing tightness at the outlet.
Features:
*Reliable seat seal soft or metal seal
*Blow-out proof stem
*Fire safe design
*Anti-static
*Lock device
*Full bore/Reduce bore
*End connection: RF, RTJ, BW
* Operation hand lever or gear box etc.
* Anti corrosion paint upon demand
Product Range:
Design:API6D,BS5351
Main Materials: carbon steel, alloy steel, stainless steel, etc.
Body Material :WCB,LCB,CF8,CF8M,CF8C,4A,Inconel, etc.
Ball: F6a, A105+ENP, F304,F316
Seat:PTFE/RPTFE/PPL/Nylon/NI60
Stem: F6a/410/17-4PH/F304
Nominal diameter: 1/2 inch-10 inch
Pressure Range：Class 150-Class 600, 150LB/300LB/600LB
Connection: RF, RTJ, BW,THR
Ends Standards:ASTM, ANSI,AWWA, JIS,BS, GOST, DIN etc.
| PN | DN(mm) | Dimensions（mm） | |||||||
|---|---|---|---|---|---|---|---|---|---|
| L | D | D1 | D2 | b-d | Z-Φd | H | D0 | ||
| 1.6MPa | 15 | 115 | 95 | 65 | 45 | 14-2 | 4-14 | 105 | 150 |
| 20 | 130 | 105 | 75 | 55 | 16-2 | 4-14 | 110 | 150 | |
| 25 | 140 | 115 | 85 | 65 | 16-2 | 4-14 | 120 | 160 | |
| 32 | 165 | 135 | 100 | 78 | 16-2 | 4-18 | 145 | 160 | |
| 40 | 180 | 145 | 110 | 85 | 16-3 | 4-18 | 155 | 250 | |
| 50 | 200 | 160 | 125 | 100 | 18-3 | 4-18 | 175 | 300 | |
| 65 | 220 | 180 | 145 | 120 | 18-3 | 4-18 | 195 | 300 | |
| 80 | 250 | 195 | 160 | 135 | 20-3 | 8-18 | 225 | 320 | |
| 100 | 280 | 215 | 180 | 155 | 20-3 | 8-18 | 255 | 320 | |
| 125 | 320 | 245 | 210 | 185 | 20-3 | 8-18 | 285 | 400 | |
| 150 | 360 | 280 | 240 | 210 | 24-3 | 8-23 | 295 | 400 | |
| 200 | 400 | 335 | 295 | 265 | 30-3 | 12-23 | 330 | 450 | |
| 2.5MPa | 40 | 180 | 145 | 110 | 85 | 18-3 | 4-18 | 155 | 250 |
| 50 | 200 | 160 | 125 | 100 | 20-3 | 4-18 | 175 | 300 | |
| 65 | 220 | 180 | 145 | 120 | 22-3 | 8-18 | 195 | 300 | |
| 80 | 250 | 195 | 160 | 135 | 22-3 | 8-18 | 225 | 320 | |
| 100 | 280 | 230 | 190 | 160 | 24-3 | 8-23 | 255 | 320 | |
| 125 | 320 | 270 | 220 | 188 | 28-3 | 8-25 | 285 | 400 | |
| 150 | 360 | 300 | 250 | 218 | 30-3 | 8-25 | 295 | 400 | |
| 200 | 400 | 360 | 310 | 278 | 34-3 | 12-25 | 330 | 450 | |
