API/BS1873 Globe Valve

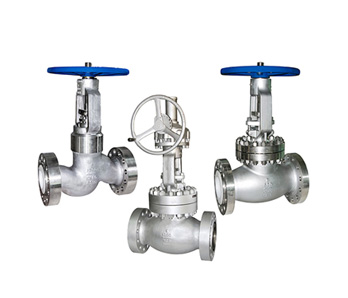

ANSI steel Globe Valve                                                                               PDF DOWNLOAD

SENSI Cast steel globe valve offers flow throttling, high performance in the  on and off medium operation. The valve disc works up and down in linear line.

The globe valve size bigger than 8” 300lbs the flow direction is from high to low port.

Main Materials: carbon steel, alloy steel, stainless steel, etc.

Body:WCB,WCC,WC6,WC9,LCB,LCC,LC1,CF8,CF8M,CF8C,4A,Inconel

Trim: F6a, F304, F316, Stellied or HF, etc.

Size: NPS 2~60IN

Pressure: Class150~1500LBS

Connection: RF, RTJ, BW

Operation:Manual, Gearbox, Pneumatic, Electric

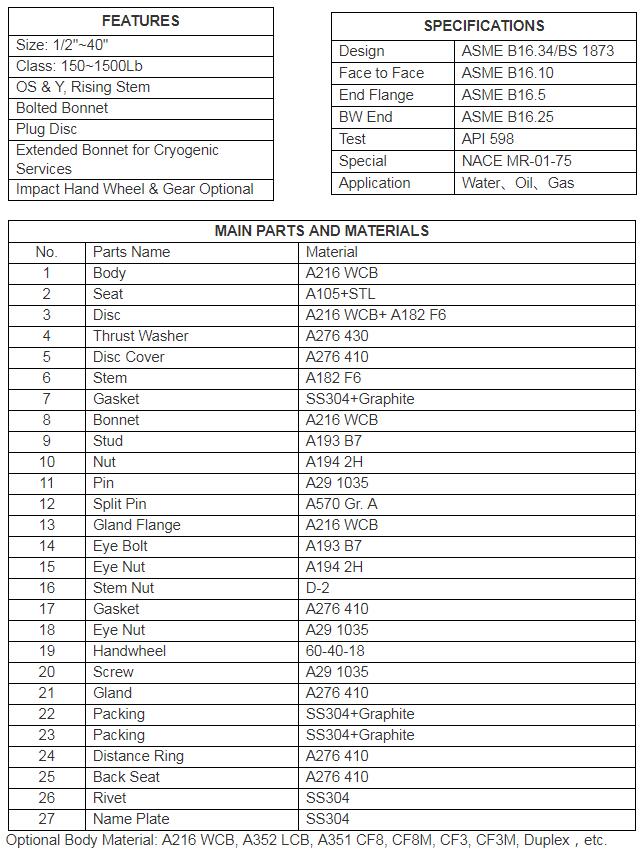

Application Standard:

Design ASME B16.34/BS1873

Face-to-face API 6D/ ASME B16.10

Flanged Ends ASME B16.5/B16.47 /MSS SP-44/GOST/DIN/EN1092-1

BW ends ASME B16.25

Temperature ratings ASME B16.34

Marking MSS SP25

Certificate EN 10204 type 3.1

Inspection Test API 598/API6D/API/600/EN12266-1
